MICRO 100

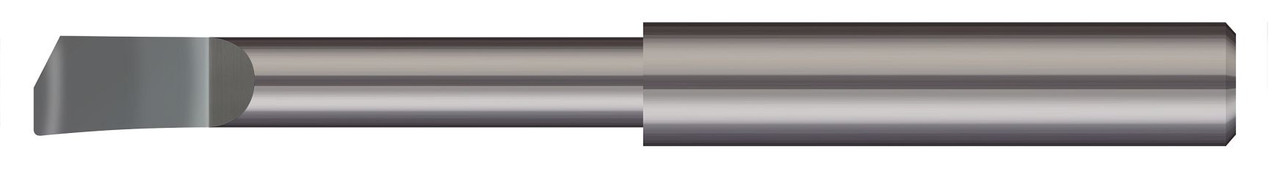

RIGHT HAND - 0.0375" MIN BORE DIA X 0.312" (5/16) MAX BORE DEPTH X 1.50" (1-1/2) OVERALL LENGTH X 0.0040" RADIUS ,HBBC-040312-004
- SKU:
- HBBC-040312-004
- MPN:
- HBBC-040312-004
- Availability:
- 68
- Shipping:
- Calculated at Checkout
Description
0.0375" MIN BORE DIA X 0.312" (5/16) MAX BORE DEPTH X 0.1250" (1/8) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH X 0.0040" RADIUS - CARBIDE BORING HELICAL BACK RAKE RIGHT HAND,HBBC-040312-004
View AllClose
Additional Information
Min Bore Diameter: |
0.0375" |
Head Width: |
0.040" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.312" (5/16) |
Shank Diameter: |
0.1250" (1/8) |
Centerline Offset: |
0.0200" |
Radius: |
0.0040" |
Face Dimension: |
0.063" (1/16) |
Neck Diameter: |
0.0350" (.9 mm) |
Overall Length: |
1.50" (1-1/2) |
Rotational Min Bore Diameter: |
0.040" |
Metric: |
N |
