MICRO 100

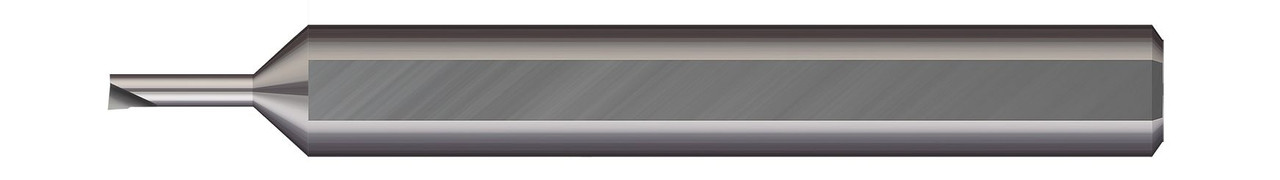

RIGHT HAND - 0.0315" (.8 MM) MIN BORE DIA X 0.100" MAX BORE DEPTH X 0.0250" TOOTH WIDTH X 0.0035" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH ,MBB-035100

SKU:
MBB-035100
MPN:
MBB-035100
Availability:
48
Shipping:
Calculated at Checkout
$35.90

Description

0.0315" (.8 MM) MIN BORE DIA X 0.100" MAX BORE DEPTH X 0.0250" TOOTH WIDTH X 0.0035" PROJECTION X 0.1250" (1/8) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE MINIATURE BORING RIGHT HAND,MBB-035100
View AllClose

Additional Information

Min Bore Diameter:
0.0315" (.8 mm)
Head Width:
0.035"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.100"
Projection:
0.0030"
Shank Diameter:
0.1250" (1/8)
Centerline Offset:
0.0175"
Neck Diameter:
0.0280" (.7 mm)
Overall Length:
1.50" (1-1/2)
Rotational Min Bore Diameter:
0.035" (.9 mm)
Tooth Width:
0.0250"
Metric:
N
