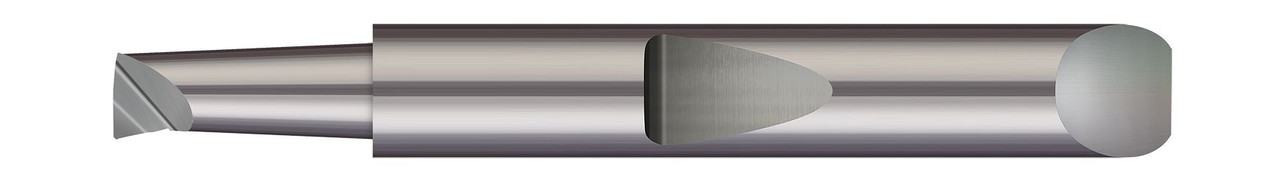

MICRO 100
QUICK CHANGE - RIGHT HAND - 3.000" (3) MAX BORE DEPTH X 0.4330" TOOTH WIDTH X 0.0750" PROJECTION X 4.50" (4-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - ALTIN COATED,QBM-4603000X
- SKU:
- QBM-4603000X
- MPN:
- QBM-4603000X
- Availability:
- 10
- Shipping:
- Calculated at Checkout
Description
3.000" (3) MAX BORE DEPTH X 0.4330" TOOTH WIDTH X 0.0750" PROJECTION X 0.5000" (1/2) SHANK DIA X 4.50" (4-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - BORING HEAD TOOL RIGHT HAND, ALTIN COATED,QBM-4603000X
View AllClose
Additional Information
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
3.000" (3) |
Projection: |
0.0750" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2250" |
Corner Radius: |
0.008" |
Length from Holder: |
3.040" |
Neck Diameter: |
0.4350" |
Overall Length: |
4.50" (4-1/2) |
Rotational Min Bore Diameter: |
0.460" |
Tooth Width: |
0.4330" |
Metric: |
N |
