MICRO 100

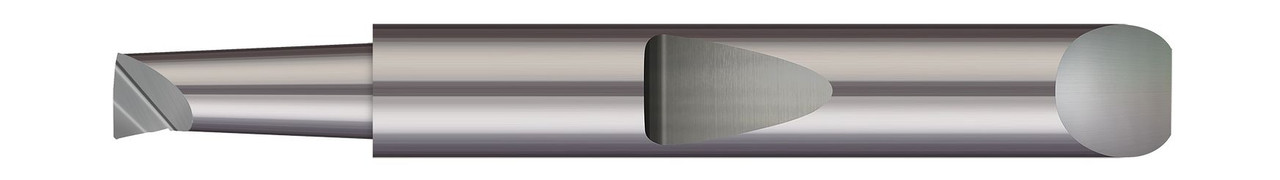

QUICK CHANGE - RIGHT HAND - 2.000" (2) MAX BORE DEPTH X 0.3030" TOOTH WIDTH X 0.0520" PROJECTION X 3.50" (3-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - ALTIN COATED,QBM-4602000X
- SKU:
- QBM-4602000X
- MPN:
- QBM-4602000X
- Availability:
- 7
- Shipping:
- Calculated at Checkout
Description
2.000" (2) MAX BORE DEPTH X 0.3030" TOOTH WIDTH X 0.0520" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.50" (3-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - BORING HEAD TOOL RIGHT HAND, ALTIN COATED,QBM-4602000X
View AllClose
Additional Information
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
2.000" (2) |
Projection: |
0.0520" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2250" |
Corner Radius: |
0.008" |
Length from Holder: |
2.040" |
Neck Diameter: |
0.4350" |
Overall Length: |
3.50" (3-1/2) |
Rotational Min Bore Diameter: |
0.460" |
Tooth Width: |
0.3030" |
Metric: |
N |
