MICRO 100

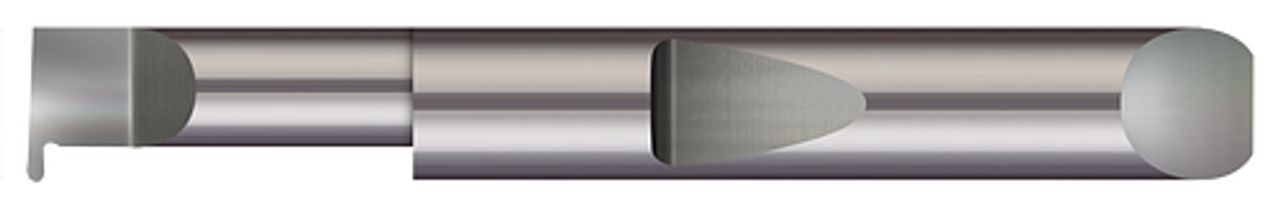

Quick Change - Right Hand - 0.5170" Min Bore DIA x 1.500" (1-1/2) Max Bore Depth x 0.1870" (3/16) Tooth Width x 0.1500" Projection x 3.00" (3) OAL x 0.0935" Radius
- SKU:
- QFR-187-24
- MPN:
- QFR-187-24
- Availability:
- 13
- Shipping:
- Calculated at Checkout
Description
0.5170" Min Bore DIA x 1.500" (1-1/2) Max Bore Depth x 0.1870" (3/16) Tooth Width x 0.1500" Projection x 0.5000" (1/2) Shank DIA x 3.00" (3) Overall Length x 0.0935" Radius - Carbide Quick Change - Full Radius Grooving Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.5170" |
Head Width: |
0.495" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.500" (1-1/2) |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2450" |
Radius: |
0.0935" |
Length from Holder: |
1.540" |
Neck Diameter: |
0.3450" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.1870" (3/16) |
Metric: |
N |
