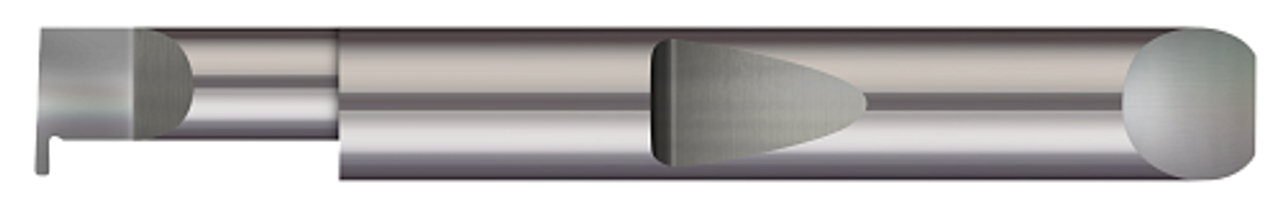

MICRO 100
Quick Change - Right Hand - 0.5170" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.1500" Projection x 2.50" (2-1/2) OAL x 0.0030" Radius
- SKU:
- QRRC3-125-750-495
- MPN:
- QRRC3-125-750-495
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.5170" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.1250" (1/8) Tooth Width x 0.1500" Projection x 0.5000" (1/2) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0030" Radius - Carbide Retaining Ring Grooving Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.5170" |
Head Width: |
0.495" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2450" |
Radius: |
0.0030" |
Length from Holder: |
1.040" |
Neck Diameter: |
0.3450" |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.1250" (1/8) |
Metric: |
N |
