MICRO 100

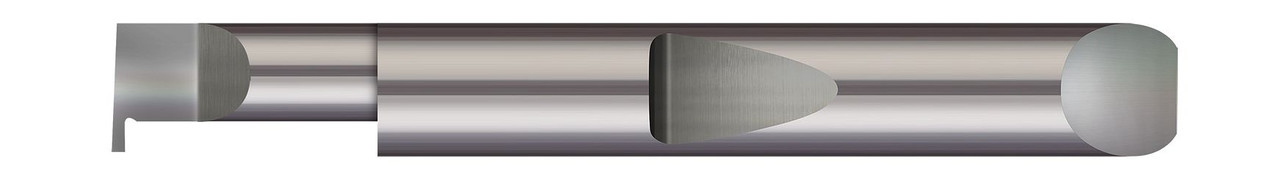

QUICK CHANGE - RIGHT HAND - 0.4950" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.2360" TOOTH WIDTH X 0.1500" PROJECTION X 3.00" (3) OVERALL LENGTH ,QRR-236-24
- SKU:
- QRR-236-24
- MPN:
- QRR-236-24
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.4950" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.2360" TOOTH WIDTH X 0.1500" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH - CARBIDE QUICK CHANGE - RETAINING RING GROOVING RIGHT HAND,QRR-236-24
View AllClose
Additional Information
Min Bore Diameter: |
0.5170" |
Head Width: |
0.495" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.500" (1-1/2) |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2450" |
Length from Holder: |
1.540" |
Neck Diameter: |
0.3450" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.2360" |
Metric: |
N |
