MICRO 100

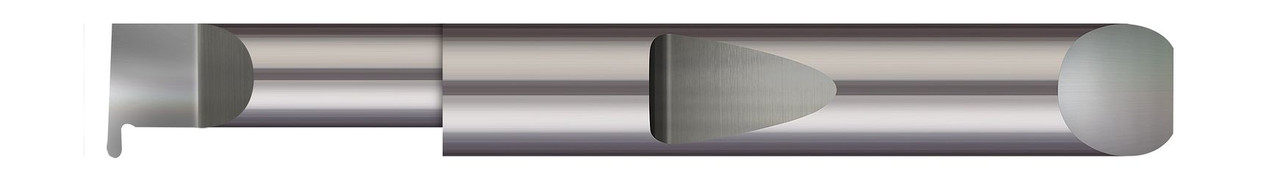

QUICK CHANGE - RIGHT HAND - 0.4950" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.0930" (3/32) TOOTH WIDTH X 0.1500" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.0465" RADIUS ,QFR-093-20
- SKU:
- QFR-093-20
- MPN:
- QFR-093-20
- Availability:
- 5
- Shipping:
- Calculated at Checkout
Description
0.4950" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.0930" (3/32) TOOTH WIDTH X 0.1500" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.0465" RADIUS - CARBIDE QUICK CHANGE - FULL RADIUS GROOVING RIGHT HAND,QFR-093-20
View AllClose
Additional Information
Min Bore Diameter: |
0.5170" |
Head Width: |
0.495" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2450" |
Radius: |
0.0465" |
Length from Holder: |
1.540" |
Neck Diameter: |
0.3450" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.0930" (3/32) |
Metric: |
N |
