MICRO 100

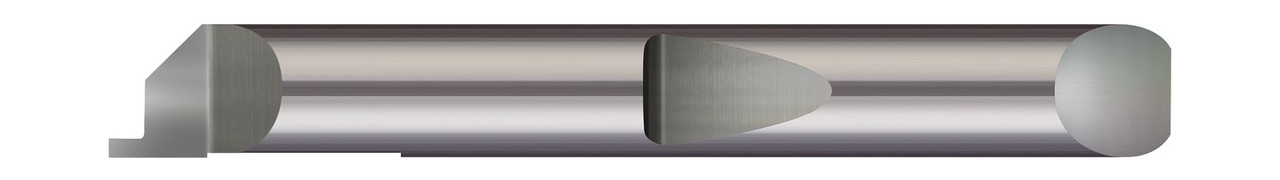

QUICK CHANGE - RIGHT HAND - 0.4700" MIN BORE DIA X 0.335" MAX BORE DEPTH X 0.1180" TOOTH WIDTH X 0.1500" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH ,QFG-470-118
- SKU:
- QFG-470-118
- MPN:
- QFG-470-118
- Availability:
- 17
- Shipping:
- Calculated at Checkout
Description
0.4700" MIN BORE DIA X 0.335" MAX BORE DEPTH X 0.1180" TOOTH WIDTH X 0.1500" PROJECTION X 0.5000" (1/2) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - FACE GROOVING RIGHT HAND,QFG-470-118
View AllClose
Additional Information
Min Bore Diameter: |
0.4700" |
Head Width: |
0.470" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.335" |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2200" |
Length from Holder: |
1.040" |
Overall Length: |
2.50" (2-1/2) |
Overall Reach: |
0.335" |
Split Length: |
0.345" |
Tooth Width: |
0.1180" |
Metric: |
N |
