MICRO 100

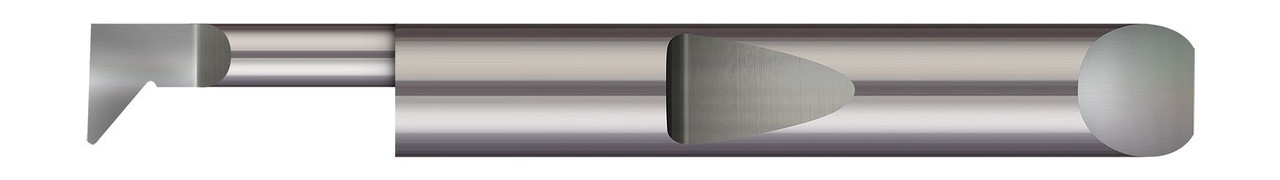

QUICK CHANGE - RIGHT HAND - 0.4600" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.1260" TOOTH WIDTH X 0.1500" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS ,QPR-4601500
- SKU:
- QPR-4601500
- MPN:
- QPR-4601500
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.4600" MIN BORE DIA X 1.500" (1-1/2) MAX BORE DEPTH X 0.1260" TOOTH WIDTH X 0.1500" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - RADIAL PROFILING RIGHT HAND,QPR-4601500
View AllClose
Additional Information
Min Bore Diameter: |
0.4820" |
Head Width: |
0.460" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.500" (1-1/2) |
Projection: |
0.1500" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2100" |
Corner Radius: |
0.008" |
Length from Holder: |
1.540" |
Neck Diameter: |
0.3100" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.1260" |
Metric: |
N |
