MICRO 100

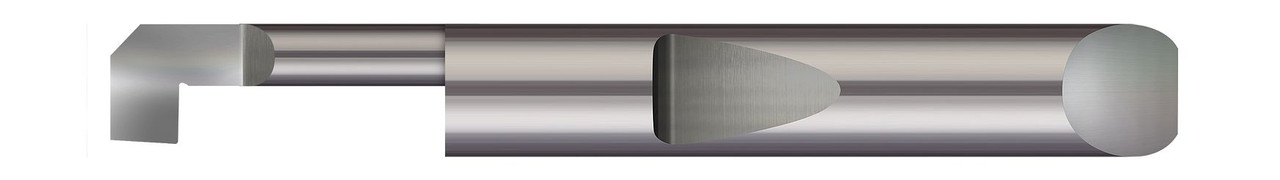

QUICK CHANGE - RIGHT HAND - 0.4600" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.2000" TOOTH WIDTH X 0.1600" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS - ALTIN COATED,QRB-4601000X
- SKU:
- QRB-4601000X
- MPN:
- QRB-4601000X
- Availability:
- 8
- Shipping:
- Calculated at Checkout
Description
0.4600" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.2000" TOOTH WIDTH X 0.1600" PROJECTION X 0.5000" (1/2) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND, ALTIN COATED,QRB-4601000X
View AllClose
Additional Information
Min Bore Diameter: |
0.4800" |
Head Width: |
0.460" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.1600" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.2100" |
Corner Radius: |
0.008" |
Length from Holder: |
1.540" |
Neck Diameter: |
0.3000" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.2000" |
Metric: |
N |
