MICRO 100

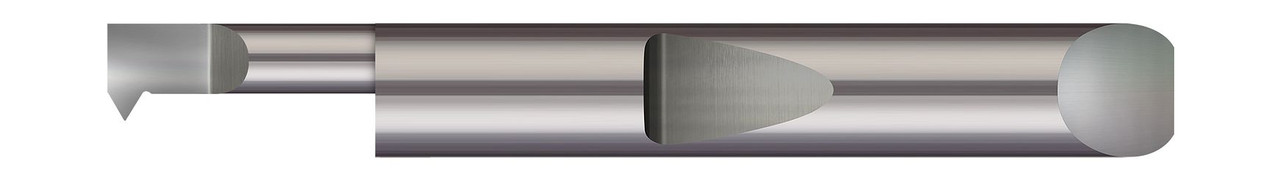

QUICK CHANGE - RIGHT HAND - 0.4600" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.1200" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS #6-24,QIT-460750

SKU:
QIT-460750
MPN:
QIT-460750
Availability:
27
Shipping:
Calculated at Checkout
$104.30

Description

0.4600" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.1200" PROJECTION X 0.5000" (1/2) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS #6-24 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND,QIT-460750
View AllClose

Additional Information

Min Bore Diameter:
0.4820"
Head Width:
0.460"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.750" (3/4)
Projection:
0.1200"
Shank Diameter:
0.5000" (1/2)
Centerline Offset:
0.2100"
Offset:
0.078" (5/64)
Corner Radius:
0.002"
Length from Holder:
1.040"
Neck Diameter:
0.3400"
Overall Length:
2.50" (2-1/2)
Thread Size:
5-32
TPI:
5-32
Metric:
N
