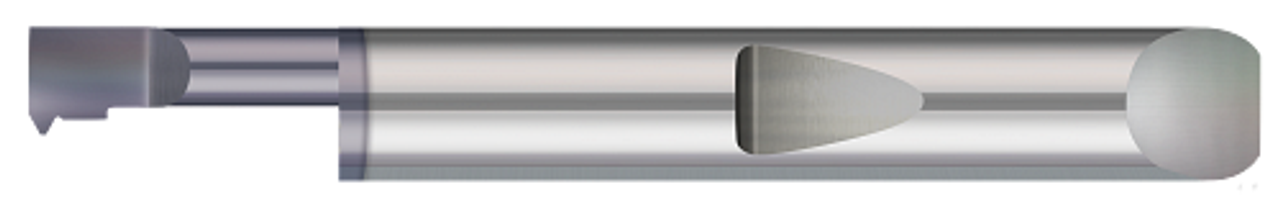

MICRO 100
Quick Change - Right Hand - 0.4020" Min Bore DIA x 1.250" (1-1/4) Max Bore Depth x 0.0416" Projection x 3.00" (3) OAL #1/2-13 - AlTiN Coated
- SKU:
- QTT-012013-125X
- MPN:
- QTT-012013-125X
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.4020" Min Bore DIA x 1.250" (1-1/4) Max Bore Depth x 0.0416" Projection x 0.5000" (1/2) Shank DIA x 3.00" (3) Overall Length #1/2-13 - Carbide Quick Change - UN Thread - Topping Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.4020" |
Head Width: |
0.380" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.0416" |
Shank Diameter: |
0.5000" (1/2) |
Centerline Offset: |
0.1300" |
Offset: |
0.034" |
Angle per Side: |
30 |
Included Angle: |
60 |
Length from Holder: |
1.540" |
Neck Diameter: |
0.3319" |
Overall Length: |
3.00" (3) |
Thread Size: |
1/2-13 |
Metric: |
N |
