MICRO 100

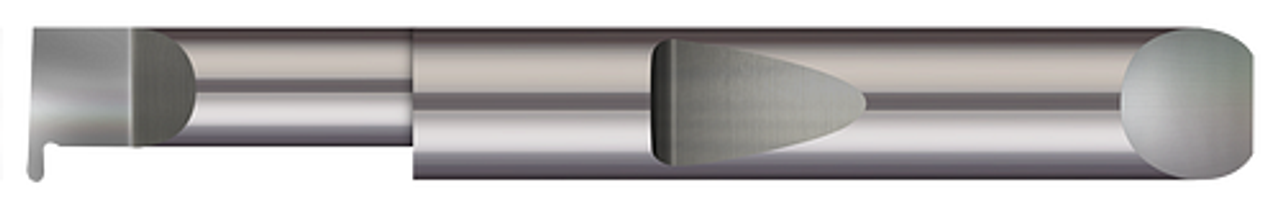

Quick Change - Right Hand - 0.3920" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0690" Tooth Width x 0.1000" Projection x 2.50" (2-1/2) OAL x 0.0345" Radius
- SKU:
- QFR-069-16
- MPN:
- QFR-069-16
- Availability:
- 12
- Shipping:
- Calculated at Checkout
Description
0.3920" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0690" Tooth Width x 0.1000" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length x 0.0345" Radius - Carbide Quick Change - Full Radius Grooving Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.3920" |
Head Width: |
0.370" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.1000" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1825" |
Radius: |
0.0345" |
Length from Holder: |
1.353" |
Neck Diameter: |
0.2700" |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.0690" |
Metric: |
N |
