MICRO 100

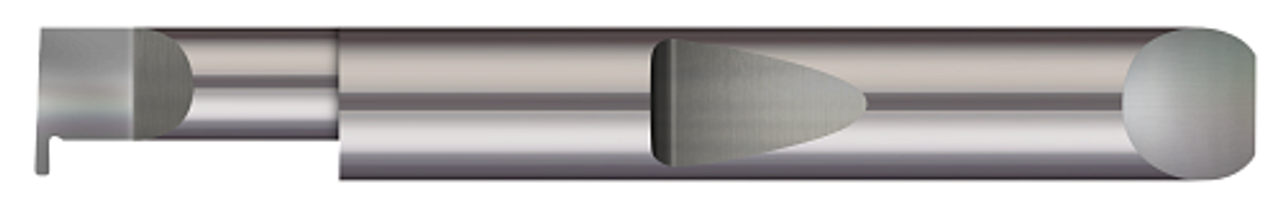

Quick Change - Right Hand - 0.3920" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0870" Tooth Width x 0.1000" Projection x 2.00" (2) OAL x 0.0030" Radius

SKU:
QRRC3-087-750-370
MPN:
QRRC3-087-750-370
Availability:
10
Shipping:
Calculated at Checkout
$78.50

Description

0.3920" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0870" Tooth Width x 0.1000" Projection x 0.3750" (3/8) Shank DIA x 2.00" (2) Overall Length x 0.0030" Radius - Carbide Retaining Ring Grooving Right Hand
View AllClose

Additional Information

Min Bore Diameter:
0.3920"
Head Width:
0.370"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.750" (3/4)
Projection:
0.1000"
Shank Diameter:
0.3750" (3/8)
Centerline Offset:
0.1825"
Radius:
0.0030"
Length from Holder:
0.853"
Neck Diameter:
0.2700"
Overall Length:
2.00" (2)
Tooth Width:
0.0870"
Metric:
N
