MICRO 100

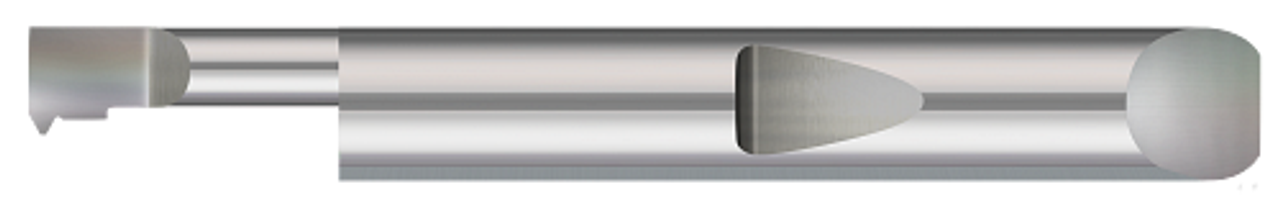

Quick Change - Right Hand - 0.3720" Min Bore DIA x 1.250" (1-1/4) Max Bore Depth x 0.0271" Projection x 2.50" (2-1/2) OAL #7/16-20
- SKU:
- QTT-071620-125
- MPN:
- QTT-071620-125
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.3720" Min Bore DIA x 1.250" (1-1/4) Max Bore Depth x 0.0271" Projection x 0.3750" (3/8) Shank DIA x 2.50" (2-1/2) Overall Length #7/16-20 - Carbide Quick Change - UN Thread - Topping Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.3720" |
Head Width: |
0.350" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.0271" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1625" |
Offset: |
0.024" |
Angle per Side: |
30 |
Included Angle: |
60 |
Length from Holder: |
1.353" |
Neck Diameter: |
0.3164" |
Overall Length: |
2.50" (2-1/2) |
Thread Size: |
7/16-20 |
Metric: |
N |
