MICRO 100

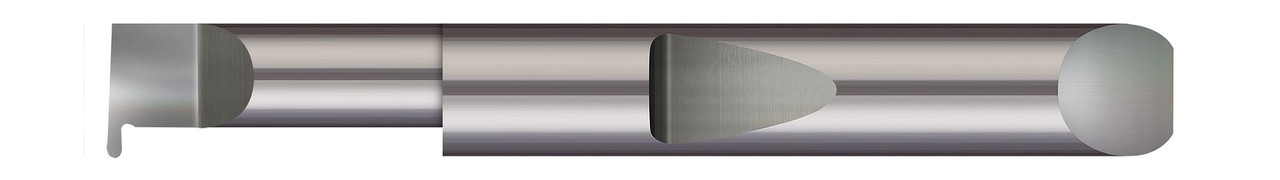

QUICK CHANGE - RIGHT HAND - 0.3700" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0790" TOOTH WIDTH X 0.1000" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.0395" RADIUS - ALTIN COATED,QFR-079-8X
- SKU:
- QFR-079-8X
- MPN:
- QFR-079-8X
- Availability:
- 64
- Shipping:
- Calculated at Checkout
Description
0.3700" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0790" TOOTH WIDTH X 0.1000" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.0395" RADIUS - CARBIDE QUICK CHANGE - FULL RADIUS GROOVING RIGHT HAND, ALTIN COATED,QFR-079-8X
View AllClose
Additional Information
Min Bore Diameter: |
0.3920" |
Head Width: |
0.370" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.1000" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1825" |
Radius: |
0.0395" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.2700" |
Overall Length: |
2.00" (2) |
Tooth Width: |
0.0790" |
Metric: |
N |
