MICRO 100

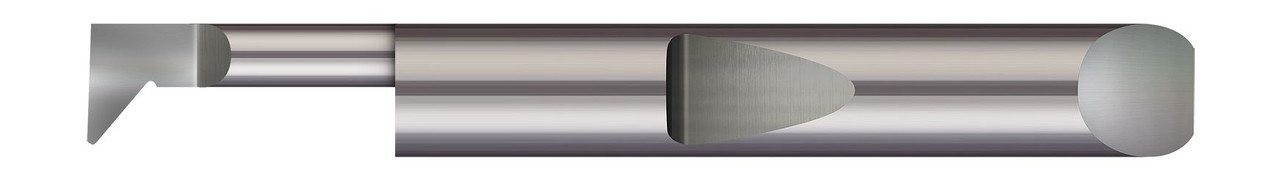

QUICK CHANGE - RIGHT HAND - 0.3600" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.1090" (7/64) TOOTH WIDTH X 0.1300" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - ALTIN COATED,QPR-3601250X
- SKU:
- QPR-3601250X
- MPN:
- QPR-3601250X
- Availability:
- 43
- Shipping:
- Calculated at Checkout
Description
0.3600" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.1090" (7/64) TOOTH WIDTH X 0.1300" PROJECTION X 0.3750" (3/8) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - RADIAL PROFILING RIGHT HAND, ALTIN COATED,QPR-3601250X
View AllClose
Additional Information
Min Bore Diameter: |
0.3820" |
Head Width: |
0.360" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.1300" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1725" |
Corner Radius: |
0.008" |
Length from Holder: |
1.353" |
Neck Diameter: |
0.2300" |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.1090" (7/64) |
Metric: |
N |
