MICRO 100

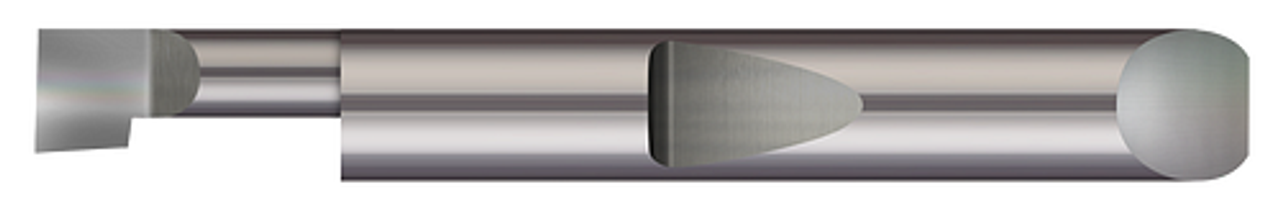

Quick Change - Right Hand - 0.3400" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0800" Projection x 2.00" (2) OAL
- SKU:
- QBB-320500-000
- MPN:
- QBB-320500-000
- Availability:
- 28
- Shipping:
- Calculated at Checkout
Description
0.3400" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0800" Projection x 0.3750" (3/8) Shank DIA x 2.00" (2) Overall Length - Carbide Quick Change - Boring Standard Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.3400" |
Head Width: |
0.320" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0800" |
Shank Diameter: |
0.3750" (3/8) |
Centerline Offset: |
0.1325" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.2400" |
Overall Length: |
2.00" (2) |
Metric: |
N |
