MICRO 100

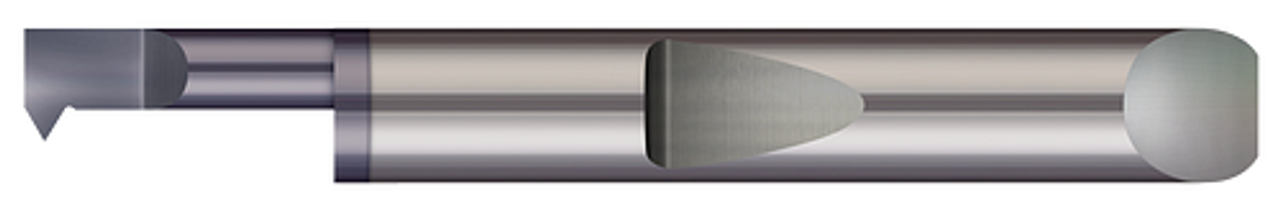

Quick Change - Right Hand - 0.3120" (5/16) Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0700" Projection x 2.50" (2-1/2) OAL x 0.002" Corner Radius #8-40 - AlTiN Coated
- SKU:
- QIT-2901000X
- MPN:
- QIT-2901000X
- Availability:
- 100
- Shipping:
- Calculated at Checkout
Description
0.3120" (5/16) Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0700" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length x 0.002" Corner Radius #8-40 - Carbide Quick Change - UN Thread - Single Point Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.3120" (5/16) |
Head Width: |
0.290" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.0700" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1340" |
Offset: |
0.046" |
Corner Radius: |
0.002" |
Length from Holder: |
1.353" |
Neck Diameter: |
0.2200" |
Overall Length: |
2.50" (2-1/2) |
Thread Size: |
8-40 |
TPI: |
8-40 |
Metric: |
N |
