MICRO 100

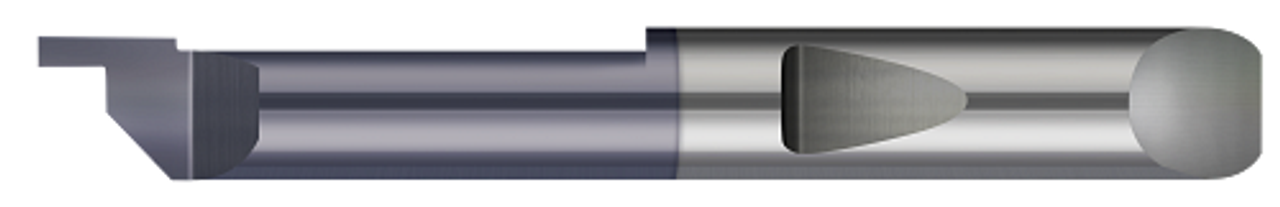

Quick Change - Right Hand - 0.3025" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0780" (5/64) Tooth Width x 0.1560" (5/32) Projection x 2.00" (2) OAL - AlTiN Coated
- SKU:
- QFGI-4397X
- MPN:
- QFGI-4397X
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.3025" Min Bore DIA x 0.750" (3/4) Max Bore Depth x 0.0780" (5/64) Tooth Width x 0.1560" (5/32) Projection x 0.3125" (5/16) Shank DIA x 2.00" (2) Overall Length - Carbide Quick Change - Face Grooving - Internal Tooth Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.3025" |
Head Width: |
0.303" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.1560" (5/32) |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1463" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.2775" |
Overall Length: |
2.00" (2) |
Overall Reach: |
0.750" (3/4) |
Tooth Width: |
0.0780" (5/64) |
Metric: |
N |
