MICRO 100

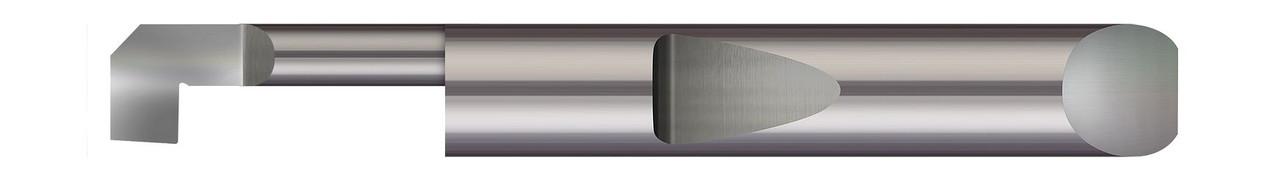

QUICK CHANGE - RIGHT HAND - 0.3000" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.1380" TOOTH WIDTH X 0.1100" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS ,QRB-3001250
- SKU:
- QRB-3001250
- MPN:
- QRB-3001250
- Availability:
- 11
- Shipping:
- Calculated at Checkout
Description
0.3000" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.1380" TOOTH WIDTH X 0.1100" PROJECTION X 0.3125" (5/16) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND,QRB-3001250
View AllClose
Additional Information
Min Bore Diameter: |
0.3200" |
Head Width: |
0.300" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.1100" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1438" |
Corner Radius: |
0.008" |
Length from Holder: |
1.853" |
Neck Diameter: |
0.1900" |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.1380" |
Metric: |
N |
