MICRO 100

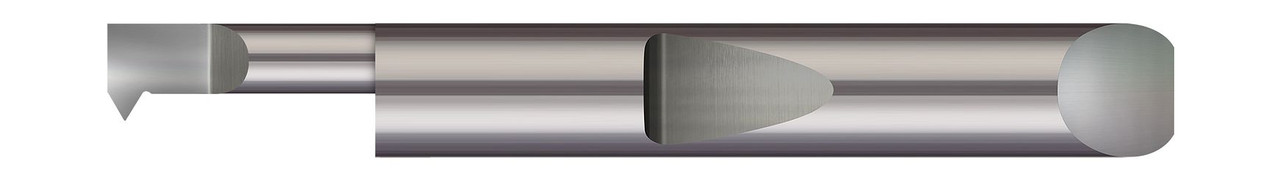

QUICK CHANGE - RIGHT HAND - 0.2900" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0700" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #14-40,QIT-290750
- SKU:
- QIT-290750
- MPN:
- QIT-290750
- Availability:
- 14
- Shipping:
- Calculated at Checkout
Description
0.2900" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0700" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #14-40 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND,QIT-290750
View AllClose
Additional Information
Min Bore Diameter: |
0.3120" (5/16) |
Head Width: |
0.290" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0700" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.1340" |
Offset: |
0.046" |
Corner Radius: |
0.002" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.2200" |
Overall Length: |
2.00" (2) |
Thread Size: |
8-40 |
TPI: |
8-40 |
Metric: |
N |
