MICRO 100

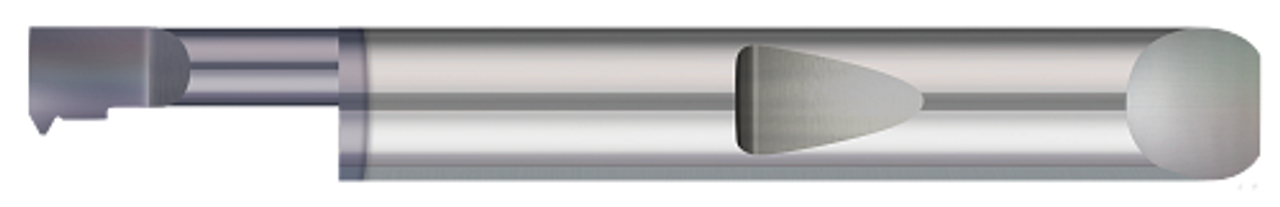

Quick Change - Right Hand - 0.2420" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0226" Projection x 2.50" (2-1/2) OAL #5/16-24 - AlTiN Coated

SKU:
QTT-051624-100X
MPN:
QTT-051624-100X
Availability:
16
Shipping:
Calculated at Checkout
$67.00

Description

0.2420" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0226" Projection x 0.3125" (5/16) Shank DIA x 2.50" (2-1/2) Overall Length #5/16-24 - Carbide Quick Change - UN Thread - Topping Right Hand, AlTiN Coated
View AllClose

Additional Information

Min Bore Diameter:
0.2420"
Head Width:
0.220"
Hand Direction:
right hand
Coating:
AlTiN
Max Bore Depth:
1.000" (1)
Projection:
0.0226"
Shank Diameter:
0.3125" (5/16)
Centerline Offset:
0.0638"
Offset:
0.021"
Angle per Side:
30
Included Angle:
60
Length from Holder:
1.353"
Neck Diameter:
0.1909"
Overall Length:
2.50" (2-1/2)
Thread Size:
5/16-24
Metric:
N
