MICRO 100

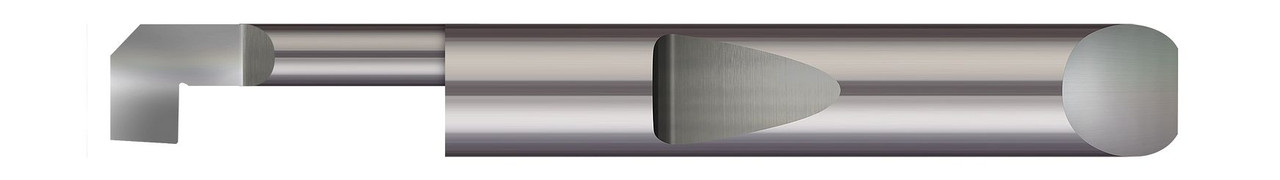

QUICK CHANGE - RIGHT HAND - 0.2300" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1380" TOOTH WIDTH X 0.1100" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - ALTIN COATED,QRB-2301000X
- SKU:
- QRB-2301000X
- MPN:
- QRB-2301000X
- Availability:
- 3
- Shipping:
- Calculated at Checkout
Description
0.2300" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.1380" TOOTH WIDTH X 0.1100" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND, ALTIN COATED,QRB-2301000X
View AllClose
Additional Information
Min Bore Diameter: |
0.2500" (1/4) |
Head Width: |
0.230" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.1100" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.0738" |
Corner Radius: |
0.008" |
Length from Holder: |
1.353" |
Neck Diameter: |
0.1200" |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.1380" |
Metric: |
N |
