MICRO 100

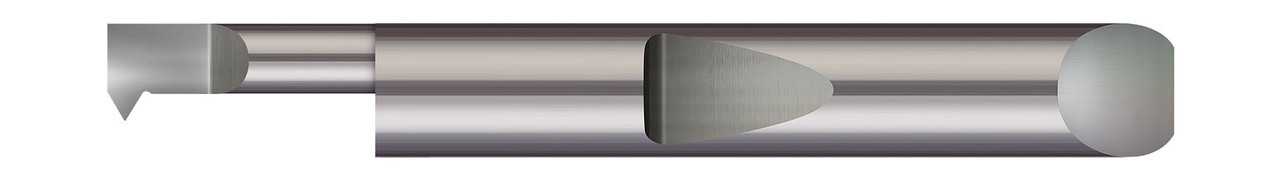

QUICK CHANGE - RIGHT HAND - 0.2300" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0550" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #20-48 - ALTIN COATED,QIT-230600X
- SKU:
- QIT-230600X
- MPN:
- QIT-230600X
- Availability:
- 100
- Shipping:
- Calculated at Checkout
Description
0.2300" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0550" PROJECTION X 0.3125" (5/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #20-48 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND, ALTIN COATED,QIT-230600X
View AllClose
Additional Information
Min Bore Diameter: |
0.2520" |
Head Width: |
0.230" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.600" |
Projection: |
0.0550" |
Shank Diameter: |
0.3125" (5/16) |
Centerline Offset: |
0.0735" |
Offset: |
0.038" |
Corner Radius: |
0.002" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.1750" |
Overall Length: |
2.00" (2) |
Thread Size: |
10-48 |
TPI: |
10-48 |
Metric: |
N |
