MICRO 100

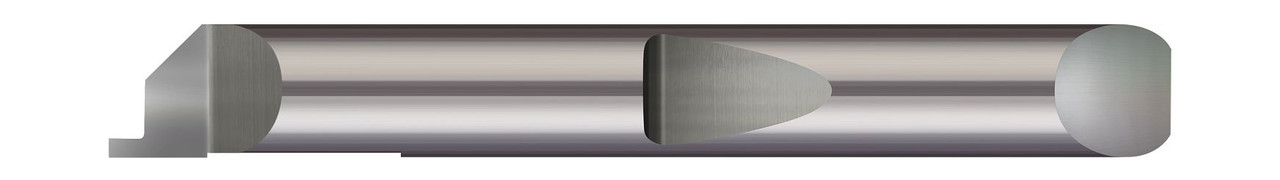

QUICK CHANGE - RIGHT HAND - 0.2300" MIN BORE DIA X 0.190" MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0500" PROJECTION X 2.00" (2) OVERALL LENGTH ,QFG-230-030
- SKU:
- QFG-230-030
- MPN:
- QFG-230-030
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.2300" MIN BORE DIA X 0.190" MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0500" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.00" (2) OVERALL LENGTH - CARBIDE QUICK CHANGE - FACE GROOVING RIGHT HAND,QFG-230-030
View AllClose
Additional Information
Min Bore Diameter: |
0.2300" |
Head Width: |
0.230" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.190" |
Projection: |
0.0500" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.1050" |
Length from Holder: |
0.853" |
Overall Length: |
2.00" (2) |
Overall Reach: |
0.190" |
Split Length: |
0.200" |
Tooth Width: |
0.0300" |
Metric: |
N |
