MICRO 100

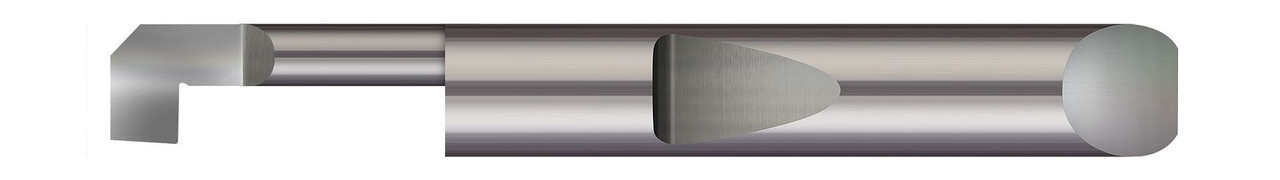

QUICK CHANGE - RIGHT HAND - 0.2000" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.1130" TOOTH WIDTH X 0.0900" PROJECTION X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS ,QRB-2001250
- SKU:
- QRB-2001250
- MPN:
- QRB-2001250
- Availability:
- 23
- Shipping:
- Calculated at Checkout
Description
0.2000" MIN BORE DIA X 1.250" (1-1/4) MAX BORE DEPTH X 0.1130" TOOTH WIDTH X 0.0900" PROJECTION X 0.2500" (1/4) SHANK DIA X 3.00" (3) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND,QRB-2001250
View AllClose
Additional Information
Min Bore Diameter: |
0.2160" |
Head Width: |
0.200" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.250" (1-1/4) |
Projection: |
0.0900" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0750" |
Corner Radius: |
0.008" |
Length from Holder: |
1.853" |
Neck Diameter: |
0.1100" (2.8 mm) |
Overall Length: |
3.00" (3) |
Tooth Width: |
0.1130" |
Metric: |
N |
