MICRO 100

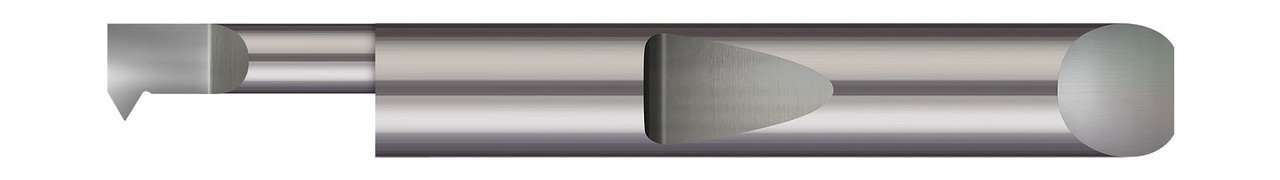

QUICK CHANGE - RIGHT HAND - 0.2000" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.0450" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS #24-56,QIT-2001000

SKU:
QIT-2001000
MPN:
QIT-2001000
Availability:
20
Shipping:
Calculated at Checkout
$45.60

Description

0.2000" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.0450" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS #24-56 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND,QIT-2001000
View AllClose

Additional Information

Min Bore Diameter:
0.2220"
Head Width:
0.200"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
1.000" (1)
Projection:
0.0450"
Shank Diameter:
0.2500" (1/4)
Centerline Offset:
0.0750"
Offset:
0.032"
Corner Radius:
0.002"
Length from Holder:
1.353"
Neck Diameter:
0.1550"
Overall Length:
2.50" (2-1/2)
Thread Size:
13-56
TPI:
13-56
Metric:
N
