MICRO 100

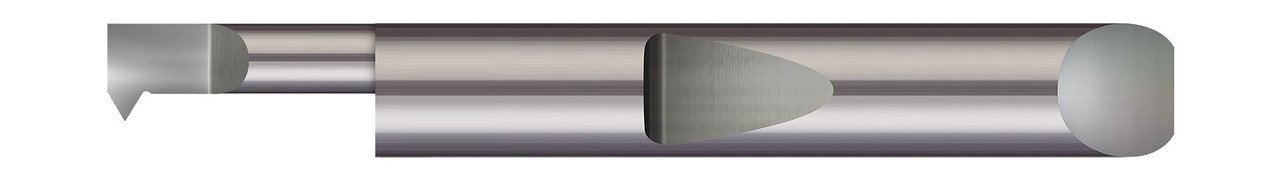

QUICK CHANGE - RIGHT HAND - 0.2000" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0450" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #24-56 - ALTIN COATED,QIT-200750X

SKU:
QIT-200750X
MPN:
QIT-200750X
Availability:
48
Shipping:
Calculated at Checkout
$51.60

Description

0.2000" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0450" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #24-56 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND, ALTIN COATED,QIT-200750X
View AllClose

Additional Information

Min Bore Diameter:
0.2220"
Head Width:
0.200"
Hand Direction:
right hand
Coating:
AlTiN
Max Bore Depth:
0.750" (3/4)
Projection:
0.0450"
Shank Diameter:
0.2500" (1/4)
Centerline Offset:
0.0750"
Offset:
0.032"
Corner Radius:
0.002"
Length from Holder:
0.853"
Neck Diameter:
0.1550"
Overall Length:
2.00" (2)
Thread Size:
13-56
TPI:
13-56
Metric:
N
