MICRO 100

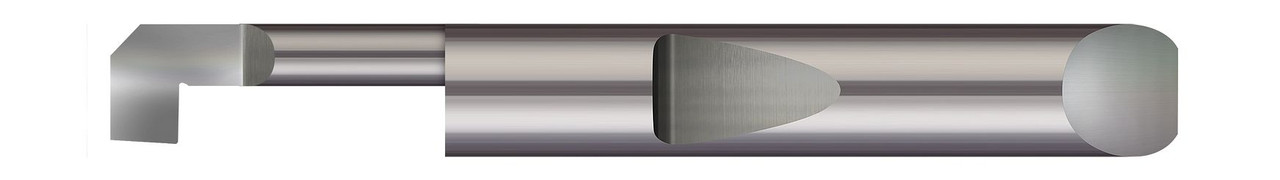

QUICK CHANGE - RIGHT HAND - 0.2000" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.1130" TOOTH WIDTH X 0.0900" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.008" CORNER RADIUS - ALTIN COATED,QRB-200500X
- SKU:
- QRB-200500X
- MPN:
- QRB-200500X
- Availability:
- 7
- Shipping:
- Calculated at Checkout
Description
0.2000" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.1130" TOOTH WIDTH X 0.0900" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.008" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND, ALTIN COATED,QRB-200500X
View AllClose
Additional Information
Min Bore Diameter: |
0.2160" |
Head Width: |
0.200" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0900" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0750" |
Corner Radius: |
0.008" |
Length from Holder: |
0.853" |
Neck Diameter: |
0.1100" (2.8 mm) |
Overall Length: |
2.00" (2) |
Tooth Width: |
0.1130" |
Metric: |
N |
