MICRO 100

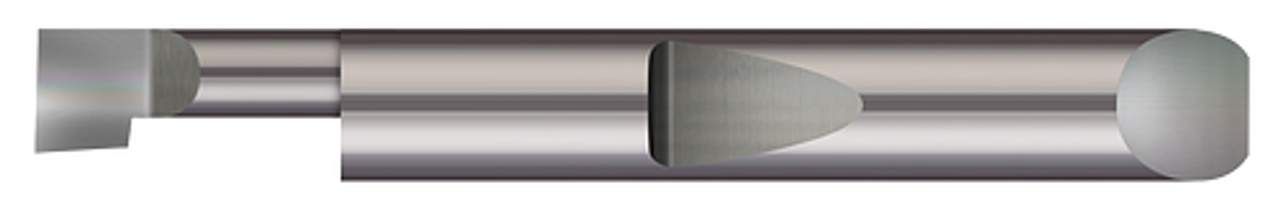

Quick Change - Right Hand - 0.1960" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0450" Projection x 2.50" (2-1/2) OAL
- SKU:
- QBB-1801000-000
- MPN:
- QBB-1801000-000
- Availability:
- 26
- Shipping:
- Calculated at Checkout
Description
0.1960" Min Bore DIA x 1.000" (1) Max Bore Depth x 0.0450" Projection x 0.2500" (1/4) Shank DIA x 2.50" (2-1/2) Overall Length - Carbide Quick Change - Boring Standard Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.1960" (5 mm) |
Head Width: |
0.180" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
1.000" (1) |
Projection: |
0.0450" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0550" |
Length from Holder: |
1.353" |
Neck Diameter: |
0.1350" |
Overall Length: |
2.50" (2-1/2) |
Metric: |
N |
