MICRO 100

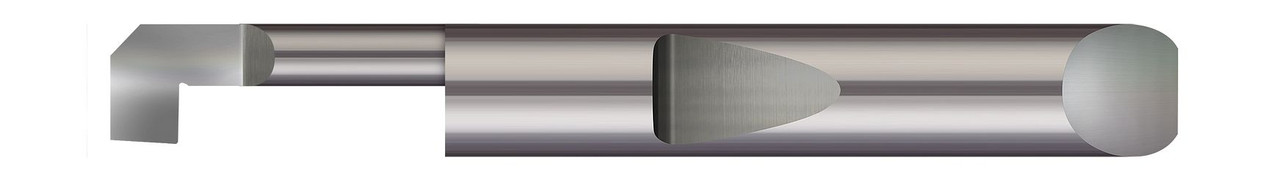

QUICK CHANGE - RIGHT HAND - 0.1800" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.1000" TOOTH WIDTH X 0.0800" PROJECTION X 2.50" (2-1/2) OVERALL LENGTH X 0.005" CORNER RADIUS - ALTIN COATED,QRB-180750X
- SKU:
- QRB-180750X
- MPN:
- QRB-180750X
- Availability:
- 24
- Shipping:
- Calculated at Checkout
Description
0.1800" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.1000" TOOTH WIDTH X 0.0800" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.50" (2-1/2) OVERALL LENGTH X 0.005" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND, ALTIN COATED,QRB-180750X
View AllClose
Additional Information
Min Bore Diameter: |
0.1960" (5 mm) |
Head Width: |
0.180" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0800" |
Shank Diameter: |
0.2500" (1/4) |
Centerline Offset: |
0.0550" |
Corner Radius: |
0.005" |
Length from Holder: |
1.353" |
Neck Diameter: |
0.1000" |
Overall Length: |
2.50" (2-1/2) |
Tooth Width: |
0.1000" |
Metric: |
N |
