MICRO 100

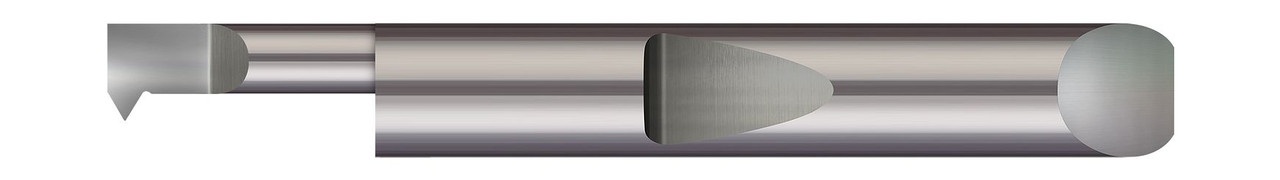

QUICK CHANGE - RIGHT HAND - 0.1800" MIN BORE DIA X 0.350" MAX BORE DEPTH X 0.0400" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #27-56,QIT-180350

SKU:
QIT-180350
MPN:
QIT-180350
Availability:
24
Shipping:
Calculated at Checkout
$45.60

Description

0.1800" MIN BORE DIA X 0.350" MAX BORE DEPTH X 0.0400" PROJECTION X 0.2500" (1/4) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.002" CORNER RADIUS #27-56 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND,QIT-180350
View AllClose

Additional Information

Min Bore Diameter:
0.2020"
Head Width:
0.180"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.350"
Projection:
0.0400"
Shank Diameter:
0.2500" (1/4)
Centerline Offset:
0.0550"
Offset:
0.029"
Corner Radius:
0.002"
Length from Holder:
0.853"
Neck Diameter:
0.1400" (9/64)
Overall Length:
2.00" (2)
Thread Size:
14-56
TPI:
14-56
Metric:
N
