MICRO 100

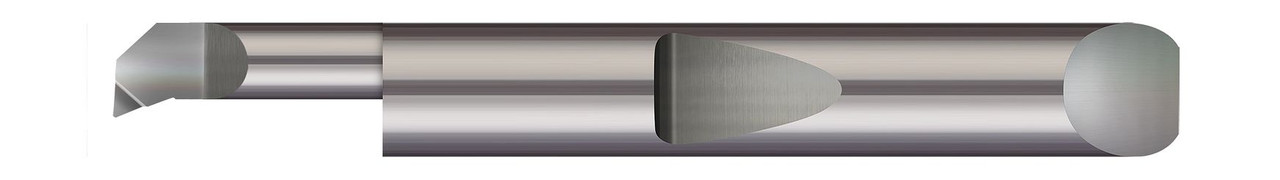

QUICK CHANGE - RIGHT HAND - 0.1600" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.0740" TOOTH WIDTH X 0.0250" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.006" CORNER RADIUS - ALTIN COATED,QBT-1601000X

SKU:
QBT-1601000X
MPN:
QBT-1601000X
Availability:
23
Shipping:
Calculated at Checkout
$38.25

Description

0.1600" MIN BORE DIA X 1.000" (1) MAX BORE DEPTH X 0.0740" TOOTH WIDTH X 0.0250" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.006" CORNER RADIUS - CARBIDE QUICK CHANGE - TOP RAKE BORING STANDARD RIGHT HAND, ALTIN COATED,QBT-1601000X
View AllClose

Additional Information

Min Bore Diameter:
0.1760"
Head Width:
0.160"
Hand Direction:
right hand
Coating:
AlTiN
Max Bore Depth:
1.000" (1)
Projection:
0.0250"
Shank Diameter:
0.1875" (3/16)
Centerline Offset:
0.0663"
Offset:
0.068"
Corner Radius:
0.006"
Face Dimension:
0.095"
Length from Holder:
1.090"
Neck Diameter:
0.1350"
Overall Length:
2.00" (2)
Split Length:
0.095"
Tooth Width:
0.0740"
Metric:
N
