MICRO 100

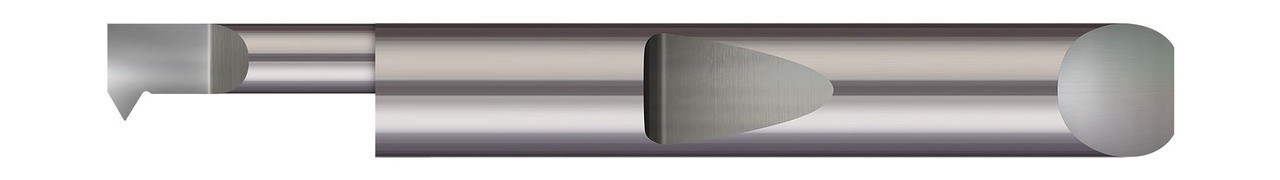

QUICK CHANGE - RIGHT HAND - 0.1600" MIN BORE DIA X 0.400" MAX BORE DEPTH X 0.0400" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS #27-56,QIT-160400
- SKU:
- QIT-160400
- MPN:
- QIT-160400
- Availability:
- 18
- Shipping:
- Calculated at Checkout
Description
0.1600" MIN BORE DIA X 0.400" MAX BORE DEPTH X 0.0400" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH X 0.002" CORNER RADIUS #27-56 - CARBIDE QUICK CHANGE - UN THREAD - SINGLE POINT RIGHT HAND,QIT-160400
View AllClose
Additional Information
Min Bore Diameter: |
0.1820" |
Head Width: |
0.160" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.400" |
Projection: |
0.0400" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0665" |
Offset: |
0.029" |
Corner Radius: |
0.002" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.1200" |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
14-56 |
TPI: |
14-56 |
Metric: |
N |
