MICRO 100

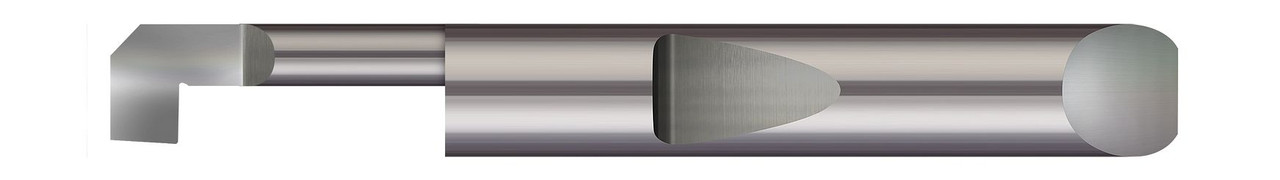

QUICK CHANGE - RIGHT HAND - 0.1560" (5/32) MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0750" TOOTH WIDTH X 0.0600" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH X 0.005" CORNER RADIUS ,QRB-156500
- SKU:
- QRB-156500
- MPN:
- QRB-156500
- Availability:
- 30
- Shipping:
- Calculated at Checkout
Description
0.1560" (5/32) MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0750" TOOTH WIDTH X 0.0600" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH X 0.005" CORNER RADIUS - CARBIDE QUICK CHANGE - REVERSE BORING RIGHT HAND,QRB-156500
View AllClose
Additional Information
Min Bore Diameter: |
0.1720" (11/64) |
Head Width: |
0.156" (5/32) |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0600" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0623" |
Corner Radius: |
0.005" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0960" |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0750" |
Metric: |
N |
