MICRO 100

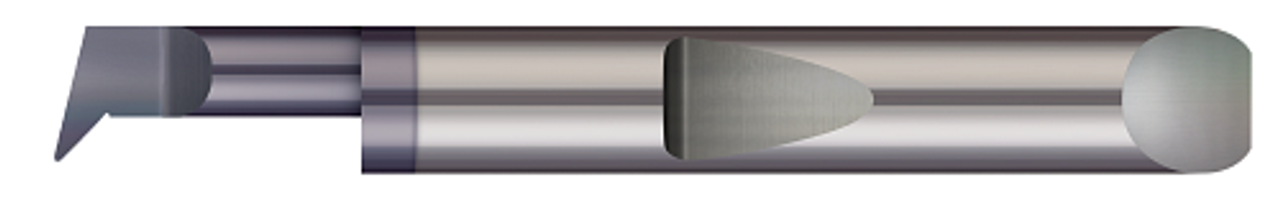

Quick Change - Right Hand - 0.1540" Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0400" Projection x 1.50" (1-1/2) OAL x 0.005" Corner Radius - AlTiN Coated
- SKU:
- QPA5-140375X
- MPN:
- QPA5-140375X
- Availability:
- 15
- Shipping:
- Calculated at Checkout
Description
0.1540" Min Bore DIA x 0.375" (3/8) Max Bore Depth x 0.0400" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.005" Corner Radius - Carbide Quick Change - Axial and Radial Profiling Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.1540" |
Head Width: |
0.140" (9/64) |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.375" (3/8) |
Projection: |
0.0400" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0463" |
Corner Radius: |
0.005" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.1000" |
Overall Length: |
1.50" (1-1/2) |
Metric: |
N |
