MICRO 100

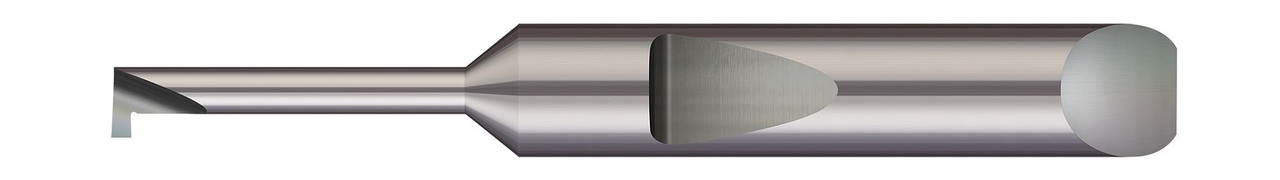

QUICK CHANGE - RIGHT HAND - 0.1200" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0400" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH - ALTIN COATED,QMRR-030-500-120X
- SKU:
- QMRR-030-500-120X
- MPN:
- QMRR-030-500-120X
- Availability:
- 100
- Shipping:
- Calculated at Checkout
Description
0.1200" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0400" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - MINIATURE RETAINING RING GROOVING RIGHT HAND, ALTIN COATED,QMRR-030-500-120X
View AllClose
Additional Information
Min Bore Diameter: |
0.1340" |
Head Width: |
0.120" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0400" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0800" |
Face Dimension: |
0.094" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0800" |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0300" |
Metric: |
N |
