MICRO 100

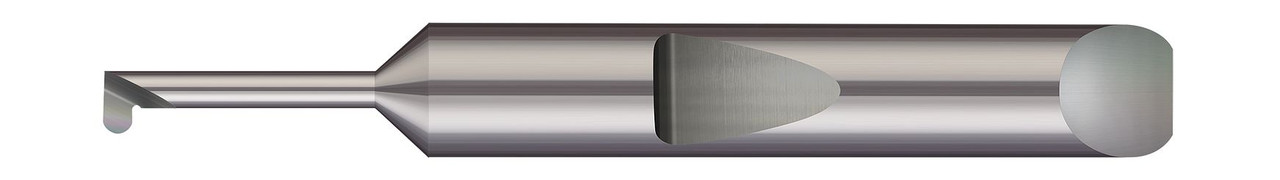

QUICK CHANGE - RIGHT HAND - 0.1000" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0300" PROJECTION X 2.00" (2) OVERALL LENGTH X 0.0150" (1/64) RADIUS - ALTIN COATED,QMFR-030-750-100X
- SKU:
- QMFR-030-750-100X
- MPN:
- QMFR-030-750-100X
- Availability:
- 14
- Shipping:
- Calculated at Checkout
Description
0.1000" MIN BORE DIA X 0.750" (3/4) MAX BORE DEPTH X 0.0300" TOOTH WIDTH X 0.0300" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH X 0.0150" (1/64) RADIUS - CARBIDE QUICK CHANGE - MINIATURE FULL RADIUS GROOVING RIGHT HAND, ALTIN COATED,QMFR-030-750-100X
View AllClose
Additional Information
Min Bore Diameter: |
0.1100" (2.8 mm) |
Head Width: |
0.100" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.750" (3/4) |
Projection: |
0.0300" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0650" |
Radius: |
0.0150" (1/64) |
Face Dimension: |
0.094" |
Length from Holder: |
1.090" |
Neck Diameter: |
0.0700" |
Overall Length: |
2.00" (2) |
Tooth Width: |
0.0300" |
Metric: |
N |
