MICRO 100

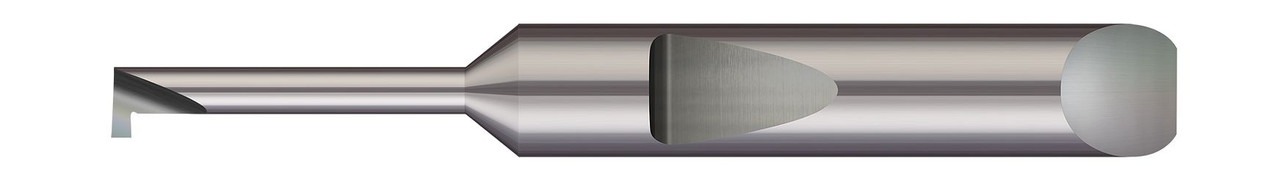

QUICK CHANGE - RIGHT HAND - 0.1000" MIN BORE DIA X 0.250" (1/4) MAX BORE DEPTH X 0.0150" (1/64) TOOTH WIDTH X 0.0300" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH ,QMRR-015-250-100
- SKU:
- QMRR-015-250-100
- MPN:
- QMRR-015-250-100
- Availability:
- 12
- Shipping:
- Calculated at Checkout
Description
0.1000" MIN BORE DIA X 0.250" (1/4) MAX BORE DEPTH X 0.0150" (1/64) TOOTH WIDTH X 0.0300" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - MINIATURE RETAINING RING GROOVING RIGHT HAND,QMRR-015-250-100
View AllClose
Additional Information
Min Bore Diameter: |
0.1100" (2.8 mm) |
Head Width: |
0.100" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.250" (1/4) |
Projection: |
0.0300" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0650" |
Face Dimension: |
0.094" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0700" |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0150" (1/64) |
Metric: |
N |
