MICRO 100

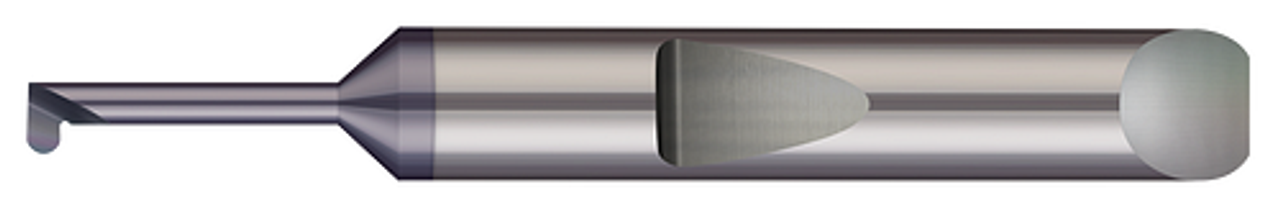

Quick Change - Right Hand - 0.0900" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Tooth Width x 0.0250" Projection x 1.50" (1-1/2) OAL x 0.0150" (1/64) Radius - AlTiN Coated
- SKU:
- QMFR-030-500-080X
- MPN:
- QMFR-030-500-080X
- Availability:
- 35
- Shipping:
- Calculated at Checkout
Description
0.0900" Min Bore DIA x 0.500" (1/2) Max Bore Depth x 0.0300" Tooth Width x 0.0250" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.0150" (1/64) Radius - Carbide Quick Change - Miniature Full Radius Grooving Right Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.0900" |
Head Width: |
0.080" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0250" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0525" |
Radius: |
0.0150" (1/64) |
Face Dimension: |
0.094" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0550" (1.4 mm) |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0300" |
Metric: |
N |
