MICRO 100

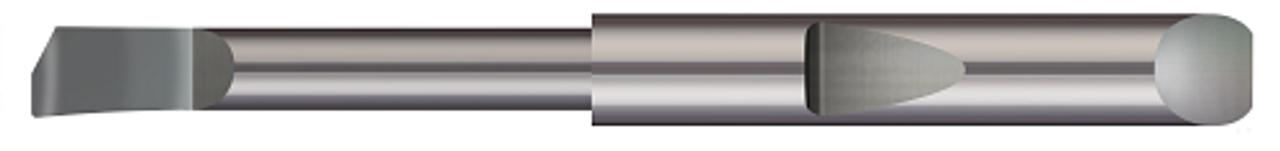

Quick Change - Right Hand - 0.0850" Min Bore DIA x 0.687" (11/16) Max Bore Depth x 2.00" (2) OAL x 0.0040" Radius
- SKU:
- QHBBC-090687-004
- MPN:
- QHBBC-090687-004
- Availability:
- 16
- Shipping:
- Calculated at Checkout
Description
0.0850" Min Bore DIA x 0.687" (11/16) Max Bore Depth x 0.1875" (3/16) Shank DIA x 2.00" (2) Overall Length x 0.0040" Radius - Carbide Quick Change - Boring Helical Back Rake Right Hand
View AllClose
Additional Information
Min Bore Diameter: |
0.0850" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.687" (11/16) |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0450" |
Radius: |
0.0040" |
Face Dimension: |
0.063" (1/16) |
Length from Holder: |
1.090" |
Neck Diameter: |
0.0800" |
Overall Length: |
2.00" (2) |
Rotational Min Bore Diameter: |
0.090" |
Metric: |
N |
