MICRO 100

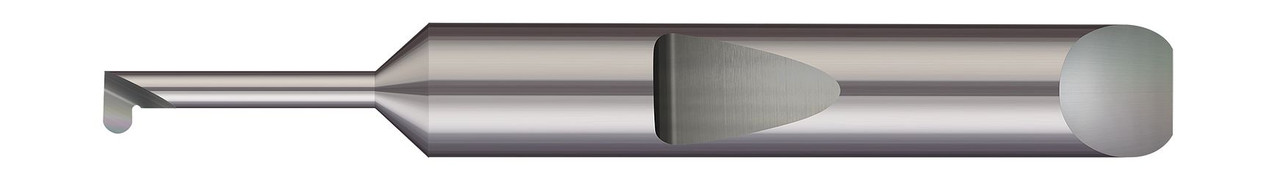

QUICK CHANGE - RIGHT HAND - 0.0800" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0150" (1/64) TOOTH WIDTH X 0.0250" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH X 0.0075" RADIUS ,QMFR-015-500-080
- SKU:
- QMFR-015-500-080
- MPN:
- QMFR-015-500-080
- Availability:
- 4
- Shipping:
- Calculated at Checkout
Description
0.0800" MIN BORE DIA X 0.500" (1/2) MAX BORE DEPTH X 0.0150" (1/64) TOOTH WIDTH X 0.0250" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH X 0.0075" RADIUS - CARBIDE QUICK CHANGE - MINIATURE FULL RADIUS GROOVING RIGHT HAND,QMFR-015-500-080
View AllClose
Additional Information
Min Bore Diameter: |
0.0900" |
Head Width: |
0.080" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.500" (1/2) |
Projection: |
0.0250" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0525" |
Radius: |
0.0075" |
Face Dimension: |
0.094" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0550" (1.4 mm) |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0150" (1/64) |
Metric: |
N |
