MICRO 100

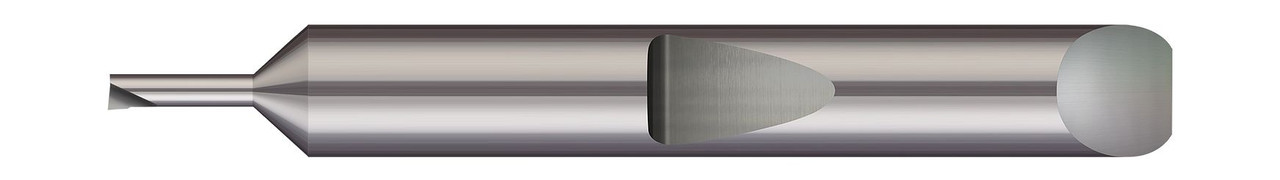

QUICK CHANGE - RIGHT HAND - 0.0700" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0700" TOOTH WIDTH X 0.0100" PROJECTION X 2.00" (2) OVERALL LENGTH ,QMBB-080600
- SKU:
- QMBB-080600
- MPN:
- QMBB-080600
- Availability:
- 22
- Shipping:
- Calculated at Checkout
Description
0.0700" MIN BORE DIA X 0.600" MAX BORE DEPTH X 0.0700" TOOTH WIDTH X 0.0100" PROJECTION X 0.1875" (3/16) SHANK DIA X 2.00" (2) OVERALL LENGTH - CARBIDE QUICK CHANGE - MINIATURE BORING RIGHT HAND,QMBB-080600
View AllClose
Additional Information
Min Bore Diameter: |
0.0700" |
Head Width: |
0.080" |
Hand Direction: |
right hand |
Coating: |
UN |
Max Bore Depth: |
0.600" |
Projection: |
0.0100" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0400" |
Length from Holder: |
1.090" |
Neck Diameter: |
0.0600" |
Overall Length: |
2.00" (2) |
Rotational Min Bore Diameter: |
0.080" |
Tooth Width: |
0.0700" |
Metric: |
N |
