MICRO 100

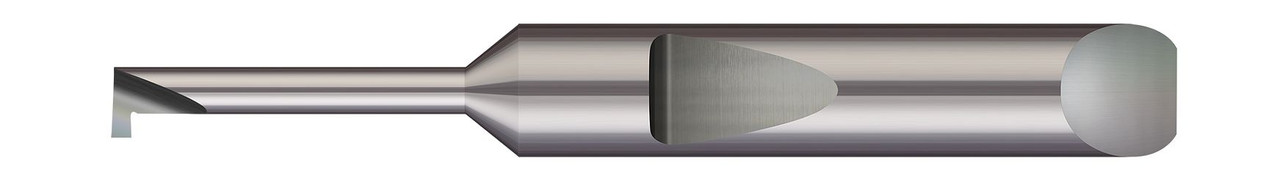

QUICK CHANGE - RIGHT HAND - 0.0600" MIN BORE DIA X 0.100" MAX BORE DEPTH X 0.0150" (1/64) TOOTH WIDTH X 0.0200" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH - ALTIN COATED,QMRR-015-100-060X

SKU:
QMRR-015-100-060X
MPN:
QMRR-015-100-060X
Availability:
31
Shipping:
Calculated at Checkout
$52.25

Description

0.0600" MIN BORE DIA X 0.100" MAX BORE DEPTH X 0.0150" (1/64) TOOTH WIDTH X 0.0200" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - MINIATURE RETAINING RING GROOVING RIGHT HAND, ALTIN COATED,QMRR-015-100-060X
View AllClose

Additional Information

Min Bore Diameter:
0.0700"
Head Width:
0.060"
Hand Direction:
right hand
Coating:
AlTiN
Max Bore Depth:
0.100"
Projection:
0.0200"
Shank Diameter:
0.1875" (3/16)
Centerline Offset:
0.0400"
Face Dimension:
0.094"
Length from Holder:
0.590"
Neck Diameter:
0.0400"
Overall Length:
1.50" (1-1/2)
Tooth Width:
0.0150" (1/64)
Metric:
N
