MICRO 100

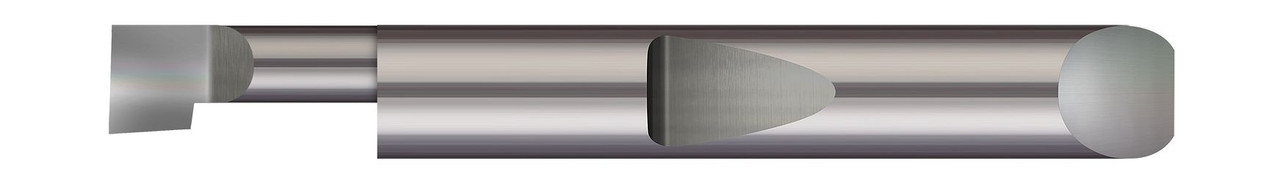

QUICK CHANGE - RIGHT HAND - 0.0500" MIN BORE DIA X 0.300" MAX BORE DEPTH X 0.0700" TOOTH WIDTH X 0.0130" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH - ALTIN COATED,QBB-050300X
- SKU:
- QBB-050300X
- MPN:
- QBB-050300X
- Availability:
- 5
- Shipping:
- Calculated at Checkout
Description
0.0500" MIN BORE DIA X 0.300" MAX BORE DEPTH X 0.0700" TOOTH WIDTH X 0.0130" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - BORING STANDARD RIGHT HAND, ALTIN COATED,QBB-050300X
View AllClose
Additional Information
Min Bore Diameter: |
0.0550" (1.4 mm) |
Head Width: |
0.050" |
Hand Direction: |
right hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.300" |
Projection: |
0.0130" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
-0.0438" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.0370" |
Overall Length: |
1.50" (1-1/2) |
Tooth Width: |
0.0700" |
Metric: |
N |
