MICRO 100

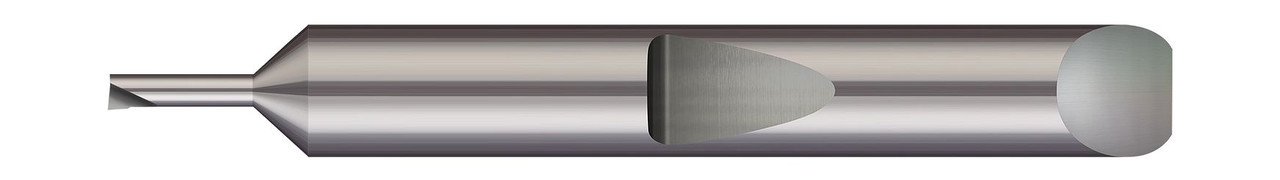

QUICK CHANGE - RIGHT HAND - 0.0315" (.8 MM) MIN BORE DIA X 0.150" MAX BORE DEPTH X 0.0250" TOOTH WIDTH X 0.0035" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH ,QMBB-035150

SKU:
QMBB-035150
MPN:
QMBB-035150
Availability:
100
Shipping:
Calculated at Checkout
$41.50

Description

0.0315" (.8 MM) MIN BORE DIA X 0.150" MAX BORE DEPTH X 0.0250" TOOTH WIDTH X 0.0035" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - MINIATURE BORING RIGHT HAND,QMBB-035150
View AllClose

Additional Information

Min Bore Diameter:
0.0320"
Head Width:
0.035"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.150"
Projection:
0.0030"
Shank Diameter:
0.1875" (3/16)
Centerline Offset:
0.0175"
Length from Holder:
0.590"
Neck Diameter:
0.0280" (.7 mm)
Overall Length:
1.50" (1-1/2)
Rotational Min Bore Diameter:
0.035" (.9 mm)
Tooth Width:
0.0250"
Metric:
N
