MICRO 100

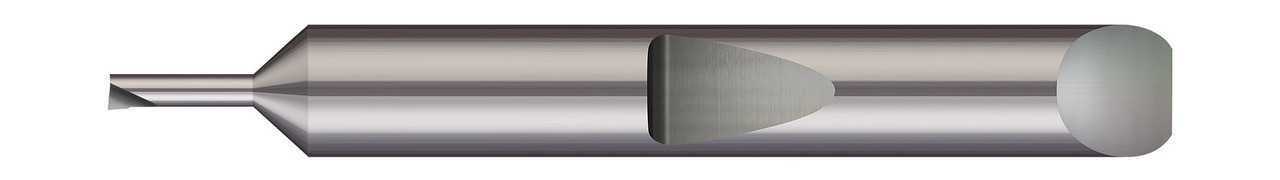

QUICK CHANGE - RIGHT HAND - 0.0180" MIN BORE DIA X 0.075" MAX BORE DEPTH X 0.0250" TOOTH WIDTH X 0.0020" PROJECTION X 1.50" (1-1/2) OVERALL LENGTH ,QMBB-020075

SKU:
QMBB-020075
MPN:
QMBB-020075
Availability:
18
Shipping:
Calculated at Checkout
$47.10

Description

0.0180" MIN BORE DIA X 0.075" MAX BORE DEPTH X 0.0250" TOOTH WIDTH X 0.0020" PROJECTION X 0.1875" (3/16) SHANK DIA X 1.50" (1-1/2) OVERALL LENGTH - CARBIDE QUICK CHANGE - MINIATURE BORING RIGHT HAND,QMBB-020075
View AllClose

Additional Information

Min Bore Diameter:
0.0180"
Head Width:
0.020"
Hand Direction:
right hand
Coating:
UN
Max Bore Depth:
0.075"
Projection:
0.0020"
Shank Diameter:
0.1875" (3/16)
Centerline Offset:
0.0100"
Length from Holder:
0.590"
Neck Diameter:
0.0160" (.4 mm)
Overall Length:
1.50" (1-1/2)
Rotational Min Bore Diameter:
0.020" (.5 mm)
Tooth Width:
0.0250"
Metric:
N
