MICRO 100

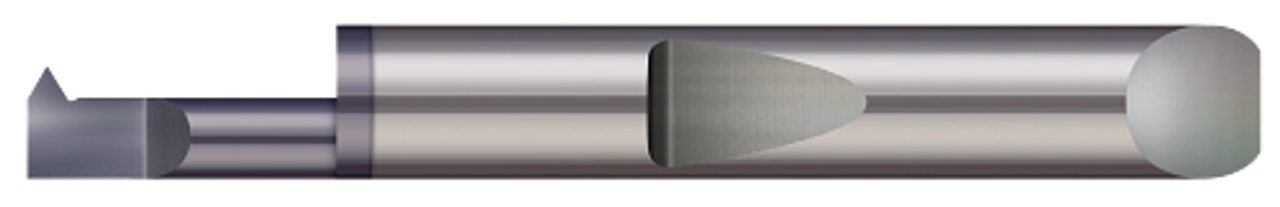

Quick Change - Left Hand - 0.1820" Min Bore DIA x 0.400" Max Bore Depth x 0.0400" Projection x 1.50" (1-1/2) OAL x 0.002" Corner Radius #14-56 - AlTiN Coated
- SKU:
- QITL-160400X
- MPN:
- QITL-160400X
- Availability:
- 10
- Shipping:
- Calculated at Checkout
Description
0.1820" Min Bore DIA x 0.400" Max Bore Depth x 0.0400" Projection x 0.1875" (3/16) Shank DIA x 1.50" (1-1/2) Overall Length x 0.002" Corner Radius #14-56 - Carbide UN Thread Left Hand, AlTiN Coated
View AllClose
Additional Information
Min Bore Diameter: |
0.1820" |
Head Width: |
0.160" |
Hand Direction: |
left hand |
Coating: |
AlTiN |
Max Bore Depth: |
0.400" |
Projection: |
0.0400" |
Shank Diameter: |
0.1875" (3/16) |
Centerline Offset: |
0.0662" |
Offset: |
0.023" |
Corner Radius: |
0.002" |
Length from Holder: |
0.590" |
Neck Diameter: |
0.1150" |
Overall Length: |
1.50" (1-1/2) |
Thread Size: |
14-56 |
TPI: |
14-56 |
Metric: |
N |
